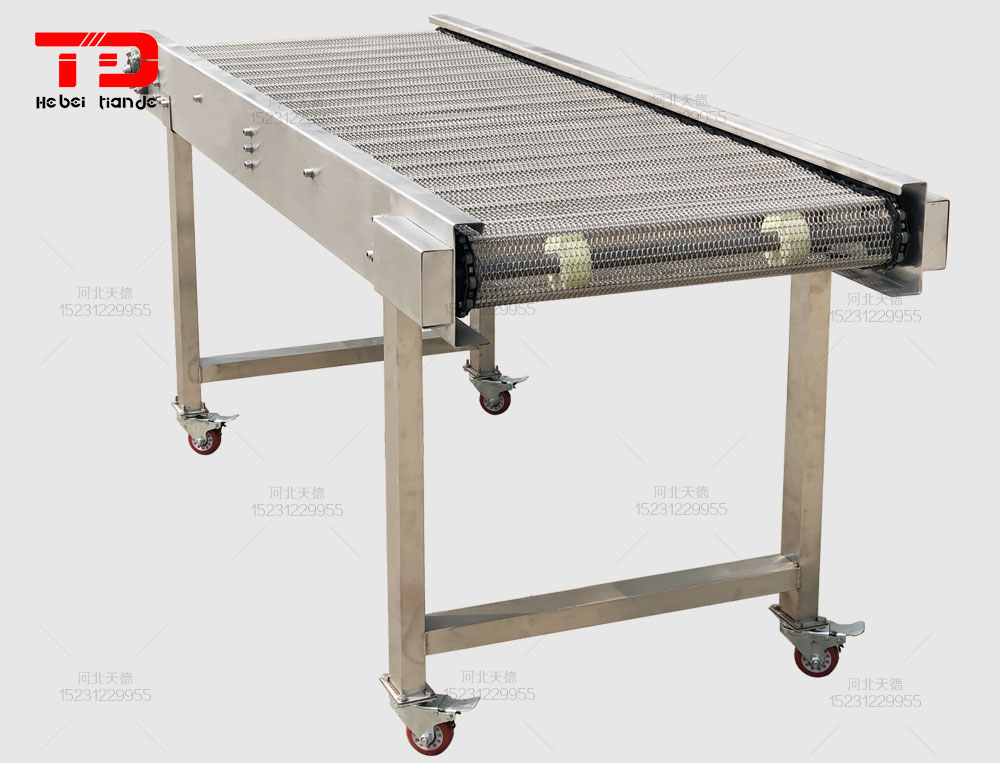

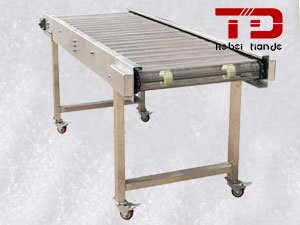

网带输送机是在一定的线路上连续输送物料的物料搬运机械，又称连续输送机。输送线路一般是固定的。输送机输送能力大，运距长，还可在输送过程中同时完成若干工艺操作.

  Wire mesh belt conveyor is a continuous tansfer machine which running on the certain track, also called continuous conveyor machine. Conveyor line always is fixed,conveyoring capacity is large and conveyoring distance is long, also can complete other processing during the conveyoring.

“网带输送机-产品特点”

产品优点：耐磨、防腐、使用寿命长、保养维修方便、运行平稳

Product advantages: wear-resistant, corrosion-resistant, long service life, convenient maintenance, stable operation

建议产品·网带输送机

适用范围

▼

适用范围：广泛应用于饮料瓶、铝罐、药品、化妆品、食品等行业的输送，通过选用不同的网带可以制作成储瓶台、提升机、杀 菌 机、蔬菜清洗机、以及肉食品输送等行业专用设备。考虑网带承受拉力限 制，单线长度一般不超过20米。

Main application: wire mesh belt conveyor is widely used in the beverage bottles, canning, pharmaceuticals, cosmetics, food and other industries, use different kind of wire mesh belt, can made into srorage bottle, lifting machine, sterilization machine, vegetable washing machine and other food equipment. according to the max tensile of wire mesh belt, generally the conveyoring line is not more than 20m.

网带定制规格：
链条节距Chain pit：25.4mm、31.75mm、38.1mm、50.8mm
串轴直径Rod diameter：5mm、6mm、8mm、10mm、12mm、14mm
串轴间距Rod pitch：一节链条一根/二节链条一根/三节链条一根/四节链条一根
丝径Wire diameter ：1.0--3.0mm
节距Cross wire diameter：5mm--30mm
螺距Spiral pitch：3mm--30mm

①

关于框架

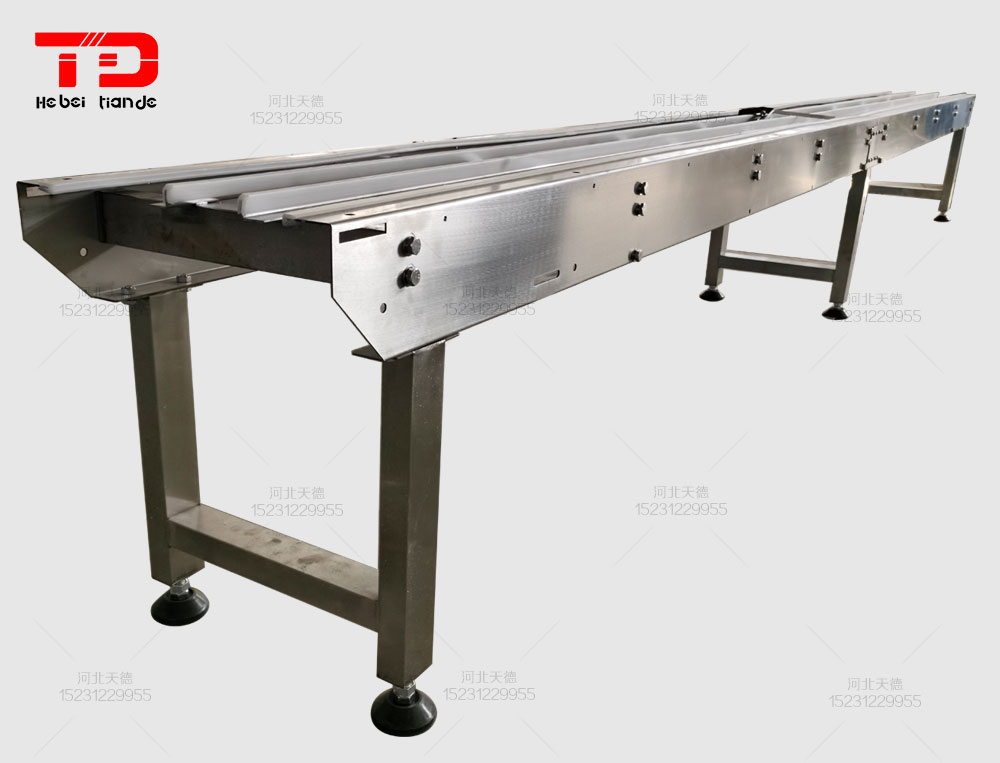

机身框架采用不锈钢板折弯成型，构造自重轻制作简单，成本节约，塑性柔韧，构造稳定，抗振荡，抗冲击。
The frame of the fuselage is made of stainless steel plate by bending. The structure is light in weight, simple in manufacture, cost saving, flexible in plasticity, stable in structure, anti vibration and anti impact.

②

关于框架厚度和连接方式

框架厚度：根据输送线的大小板厚可选择2.0mm、2.5mm、3.0mm、3.5mm、4.0mm（3.0mm为常用厚度）

Frame thickness: 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm (3.0mm is the common thickness) can be selected according to the thickness of large and small plates of the conveyor line

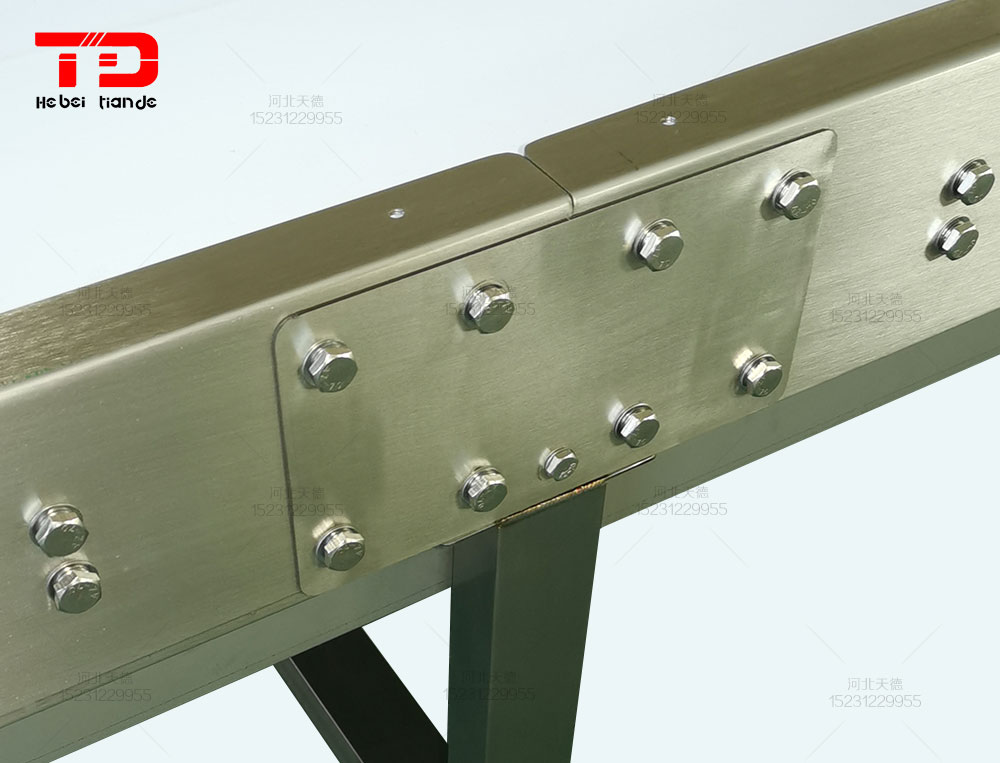

链接方式：框架一般为2.5米一节，每节之间用连接加固板和螺栓连接
Connection mode: the frame is generally 2.5m section, and each section is connected by connecting reinforcing plate and bolt

③

关于传动轴与链轮

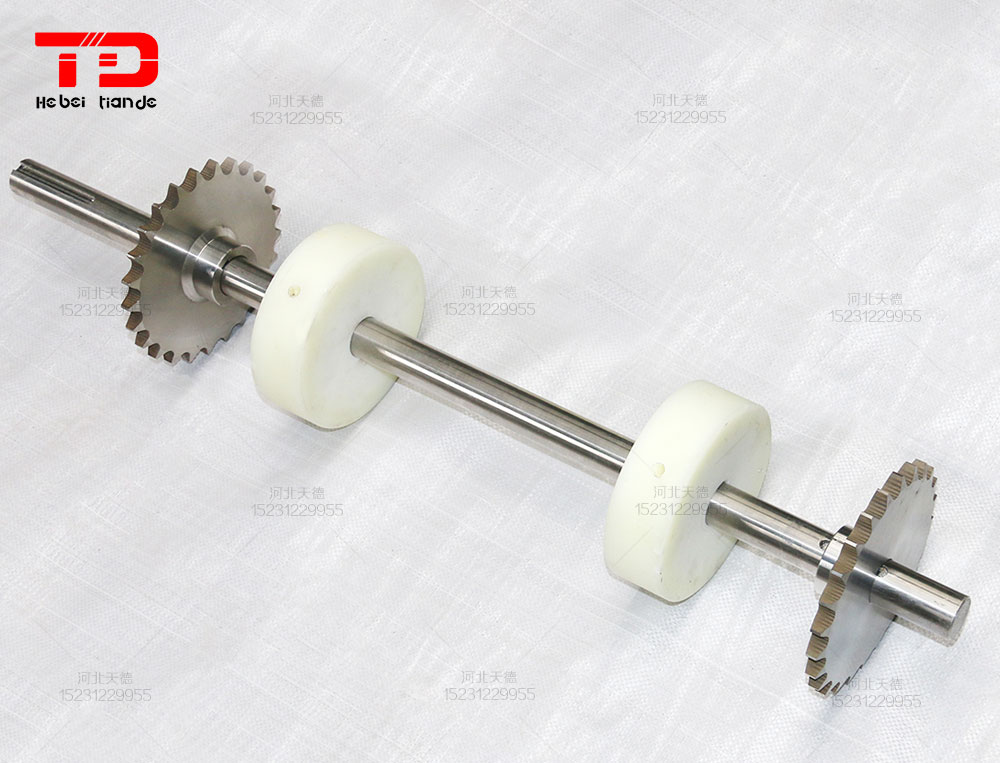

传动轴：根据使用环境要求可以选择304不锈钢材质或者45#钢材质
Transmission shaft: 304 stainless steel or 45# steel can be selected according to the requirements of the use environment
链轮：根据使用环境要求可以选择304不锈钢材质或者45#钢材质
Sprocket: 304 stainless steel or 45 #steel can be selected according to the requirements of service environment

④

关于电动机

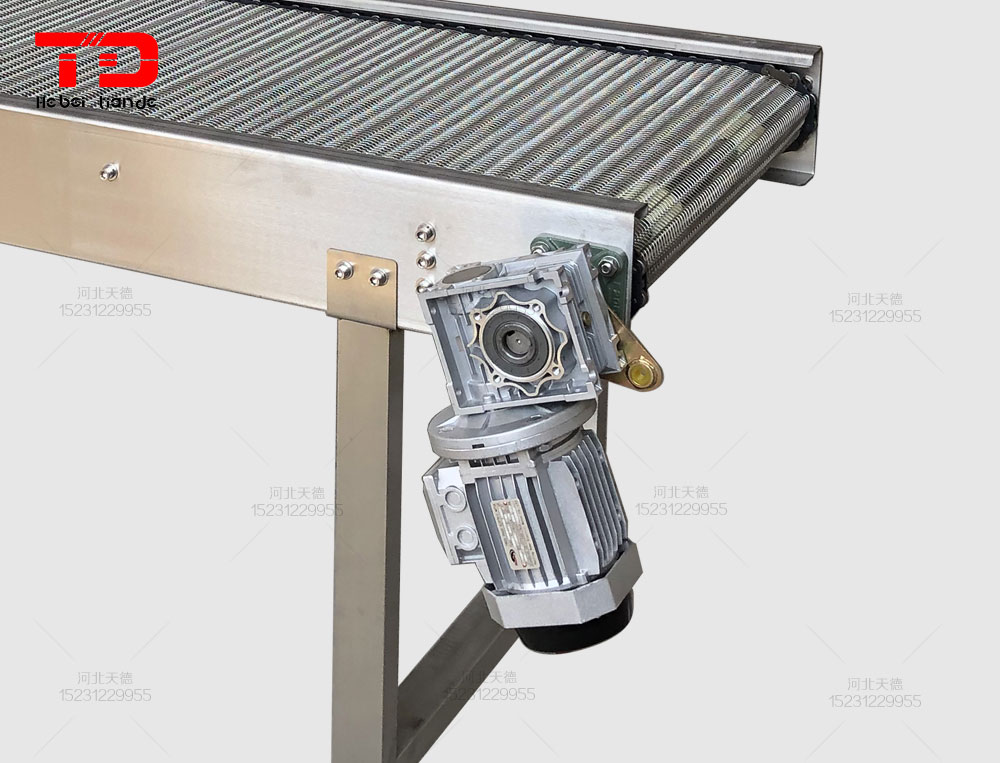

电机：可以选择RV电机减速机、摆线针电机减速机
Motor: RV motor reducer and cycloid needle motor reducer can be selected
电机可以连接变频器来调节输送速度
The motor can be connected to a frequency converter to adjust the delivery speed
